Bulk Delete Terminations

MHARNESS allows for all termination points for cables in a model to be deleted at once through a single menu.

Bulk deleting terminations

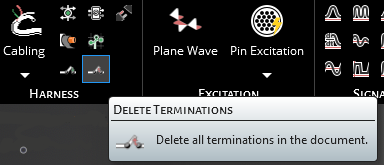

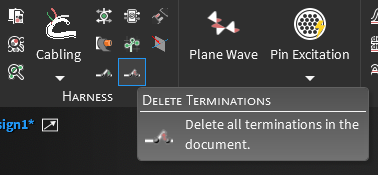

  1. Click Bulk Delete Terminations Bulk Delete Terms 16 within the Harness section under the MHARNESS tab in the Ribbon.

    bulkdeleteterms 1

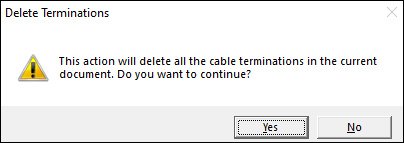

  2. In the pop-up window, select Yes to delete all terminations in the model.

    bulkdeleteterms 2
