Bulk Assign Terminations

Prior to bulk assigning terminations, the cabling within the segment should be completed.

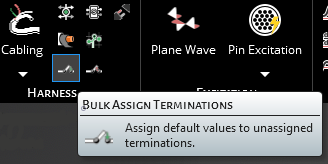

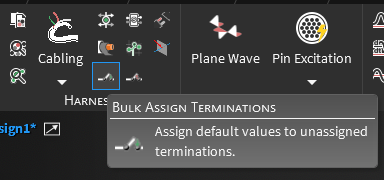

1. Click Bulk Assign Terminations within the Harness section under the MHARNESS tab in the Ribbon.

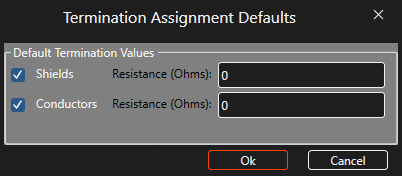

2. In the pop-up window, the circuit termination instructions will appear asking the user to select whether to terminate shields and/or conductors. Separate termination resistance values can be assigned to each type.



3. Users can edit the newly-created terminations as normal by right clicking the cable name in the Simulation Tree and navigating to the terminations properties panel. Alternatively, users can right click a termination point and select Bulk Edit Terminations or Assign Default Terminations.
