AutoJoin Connectors

MHARNESS allows users to automatically join connectors with identical signal IDs using a custom junction. The tool also allows users to tweak signal IDs from within the GUI, instead of needing them to be defined in the input file. Typically, this option will be in the "Metadata" menu within the cable editor tool, except for cable bundles. In cable bundles, each individual subcable can have its ID changed, so that option is inside the "Terminations" menu within the cable bundle editor tool.

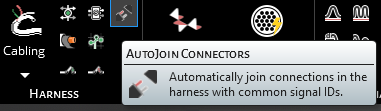

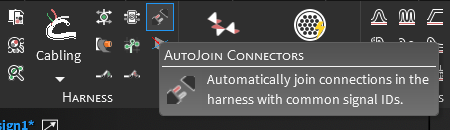

To automatically join connectors with identical signal IDs, simply click the AutoJoin Connectors button within the Harness section under the MHARNESS tab in the ribbon.
