Overbraid

Also known as overshields, outershields, or oversleeves, overbraids are types of shields that are generally fabricated using braided strands and are commonly wrapped around one or more cables as a secondary fabrication step. MHARNESS includes properties for a variety of common stranded copper-tinned overbraids whose parameters were experimentally measured and several types of Glenair overbraids. If twisted cables are desired, clickhere.

Instructions

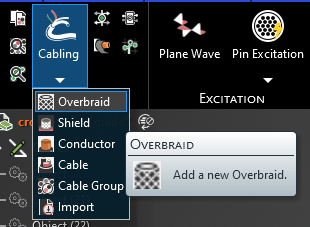

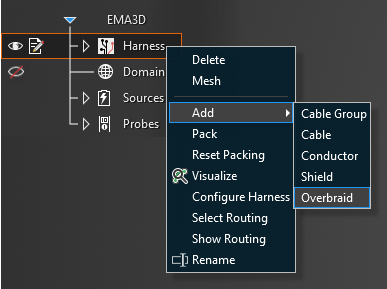

  1. ClickHarness Image 16 white Cabling within the Harness section under the MHARNESS tab in the Ribbon. Then selectOverbraid Image 16png Overbraid from the drop-down menu.

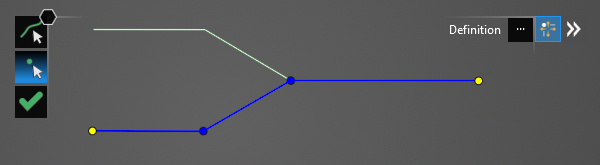

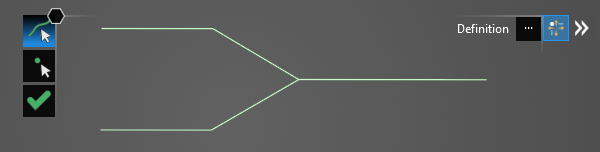

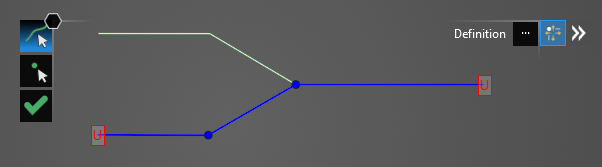

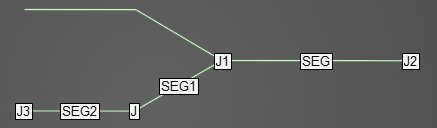

  2. Using the select lineSelect Line Image 16 tool, select the line segments that comprise the overbraid by left clicking them individually or by using the lasso function. The selected segments will turn blue and the line junctions will show as blue dots. The red, boxed U at each end point stands for unterminated endpoint.

  3. Using the select pointSelect Point Image 16 tool, select the unterminated endpoints. They will turn yellow.

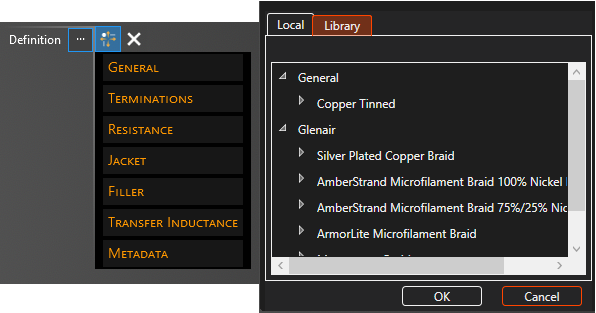

  4. In the HUD, click the ellipsis next to Definition. Click the Library Tab, expand the desired overbraid category, and finally select the overbraid type. If the overbraid has been previously used in the project, the type can also be selected from the Local Tab, rather than the Library Tab. Note when applying a cable type from the local tab that all cables defined with that specific cable name will share the same properties; therefore, it is recommended that the Short Name be assigned in the cable metadata.

  5. After choosing the type, the properties of the overbraid can be changed within the Properties Panel.

  6. Click OKCheck Image 16 to complete the definition.

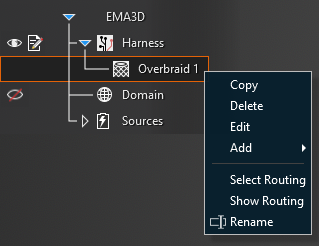

  7. Adjust the definitions of the Overbraid at any time by right clicking it within the Simulation Tree and selecting Edit from the pop-up menu.

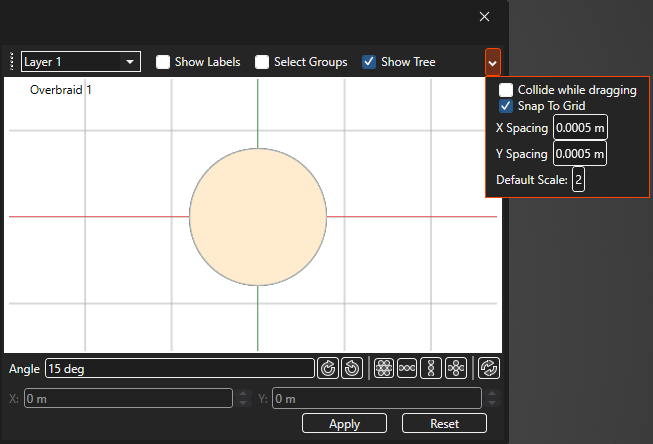

  8. To view a cross section of the overbraid after it has been created, select theInspect Cross Section Image 16 Inspect Cross Section tool from the Harness section within the MHARNESS tab of the ribbon and hover over the overbraid line.

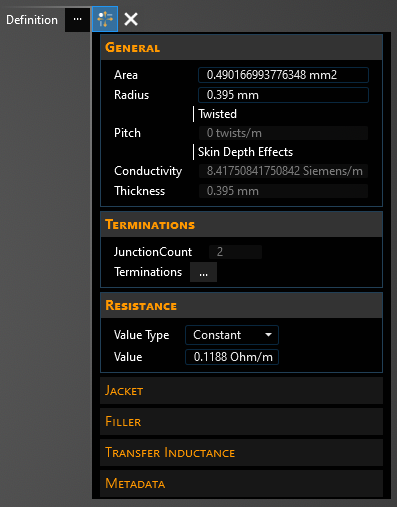

General
Options

Entry

Meaning

Definition

Local definition type assigned to this overbraid.

Overbraid Shape

Overbraid geometry type.

Ellipse Geometry
Ellipse Geometry Options

Entry

Meaning

X-Radius

Overbraid radius along X (horizontal) axis [mm].

Y-Radius

Overbraid radius along Y (vertical) axis [mm].

Polygon Geometry
Polygon Geometry Options

Entry

Meaning

Width

Width of rectangular overbraid [mm].

Height

Height of rectangular overbraid [mm].

Circular Geometry
Circular Geometry Options

Entry

Meaning

Radius

Minimum radius of overbraid [mm].

Twisted

Should the contents be twisted [T/F].

Pitch

Contents twist rate [twists/m].

Terminations
Terminations Options

Entry

Meaning

Junction Count

Number of junctions in the proposed route.

Terminations

Termination points in the proposed route.

Resistance
Resistance Options

Entry

Meaning

Value Type

Constant value or radius-dependent (estimate) of resistance.

Value

Resistance value [Ω/m].

Area

Minimum area of overbraid [mm^2]. Calculated, not user-entered.

Skin Depth Effects

Does the overbraid exhibits frequency dependent skin depth effects? [T/F].

Conductivity

DC conductivity of overbraid [S/m].

Thickness

Thickness of the overbraid [mm].

Jacket
Jacket Options

Entry

Meaning

Thickness

Thickness of the jacket [mm].

Dielectric

Dielectric constant of the jacket.

Color

Color of the jacket.

Filler
Filler Options

Entry

Meaning

Thickness

Thickness of the background filler material [mm].

Dielectric

Dielectric constant of the background filler material.

Color

Color of the background filler material.

Transfer Inductance
Transfer Inductance Options

Entry

Meaning

Transfer Inductance

Transfer inductance properties of the overbraid.

Method

Method for defining braid parameters [Measured/Analytic].

Transfer Inductance Analytic Model

Transfer inductance analytical approximation model.

Value

Transfer inductance value [H/m]. Only active for Measured Method and Constant Value Type.

Value Type

Is the Value constant or radius-dependent?

Construction

Construction type of the overbraid.

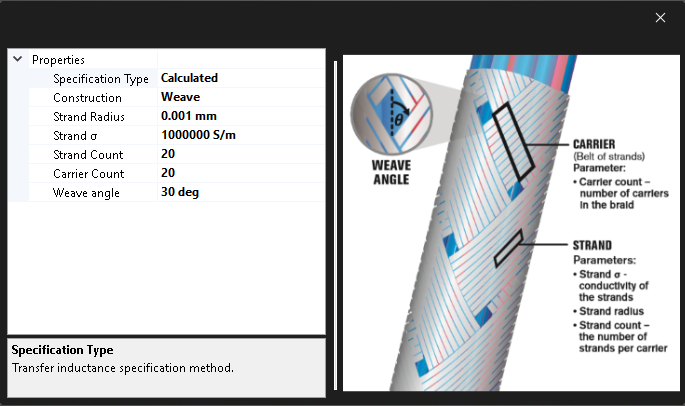

Strand Radius

Radius of wire strands composing the overbraid [mm].

Strand Conductivity (σ)

Conductivity of wire strands composing the overbraid [S/m].

Strand Count

Number of strands per carrier.

Carrier Count

Number of carriers in a braid.

Weave Angle

Weave angle of wire strands composing the overbraid [deg].

Tube Conductivity (σ)

Conductivity of the tube composing the overbraid [S/m]. Only active for Tubular Construction.

Tube Thickness

Thickness of the tube composing the overbraid [m]. Only active for Tubular Construction.

Loss Tangent Parameters
Loss Tangent Parameters Options

Entry

Meaning

Enable Loss Tangent

Enable loss tangent for this overbraid? [True/False].

Loss Tangent

Loss tangent value.

Measured Frequency

Frequency at which the loss tangent was measured [MHz].

Metadata
Metadata Options

Entry

Meaning

Part Number

Manufacturer part number of the overbraid [optional].

Company

Name of company that manufactures the overbraid [optional].

Category

Category or type of the overbraid [optional].

Abbreviation

Abbreviated reference of the overbraid [optional].

Description

Description of the overbraid [optional].

Short Name

Short name for the overbraid [optional].

Long Name

Longer name for the overbraid [optional].

Version

Version of the overbraid [optional].

Signal ID

ID for the signal on the overbraid [optional].
