Probes

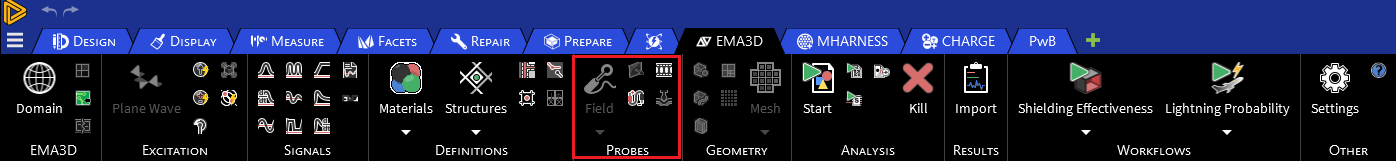

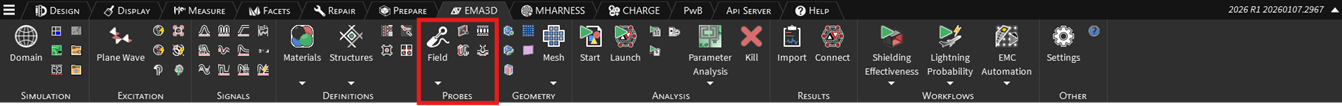

The Probes section contains the EMA3D probe options.

Probes are used in EMA3D to visualize physical quantities such as electric fields, magnetic fields, voltages, currents, etc. evaluated on specific geometry, i.e. points, lines, surfaces, or volumes within the solution domain.

There are many different probe types available in EMA3D, including:

1.   Boxed Region

2.   Point

3.   Exterior Field

4.   Antenna Far Field

5.   3D

6.   Current

7.   Animation

8.   Voltage

9.   Thin Wire
