PMC

1. Check to make sure all of the relevant structures in the Structure Tree are checked to make them visible.

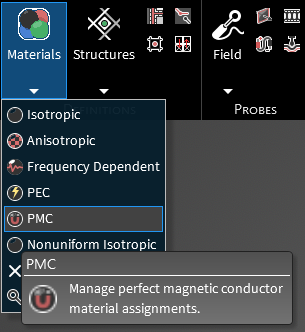

2. Click Materials within the Definitions section under the EMA3D tab in the ribbon.

3. Click PMC in the drop-down list.



4. Click on the appropriate selection tool (i.e., body , surface , or line ) tool in the top left of the model window to restrict the assignment definition.

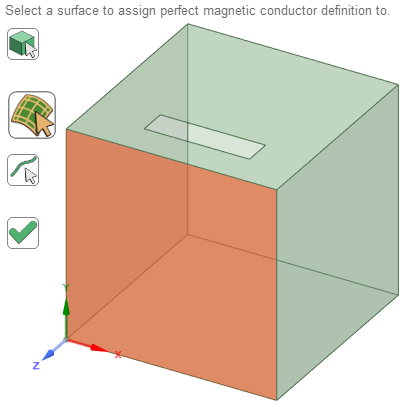

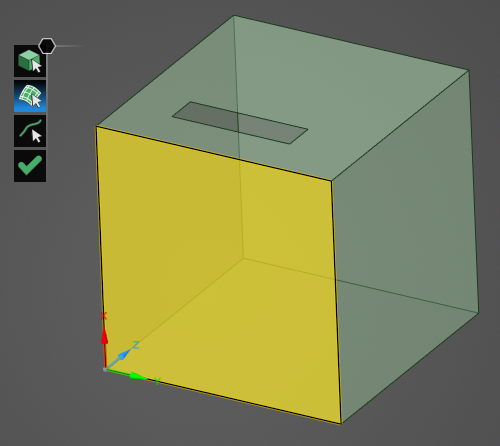

5. To assign material properties, either select the geometric entity in the model window or in the Structure Tree.



6. The selected surfaces will be recolored salmon in the model window.

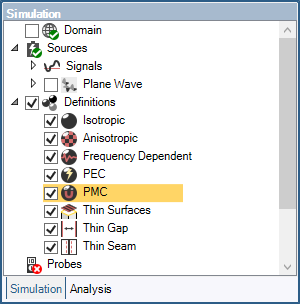

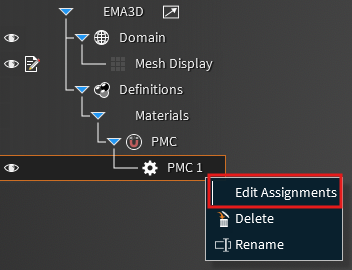

7. To hide the color and revert to the original, more transparent view, uncheck the check box next to PMC under the Definitions node in the Simulation Tree or uncheck Definitions to hide all materials.



8. Click to complete the material assignments.
