Nonuniform Isotropic |  |
Nonuniform isotropic materials include both electric and magnetic insulating and lossy media, characterized by user-supplied values of the permittivity, the permeability, and the electric and magnetic conductivity. Nonuniform isotropic materials differ from isotropic materials in that users also supply a density value in nonuniform isotropic materials. This material type is useful when calculating Absorption Rates.
InstructionsClick

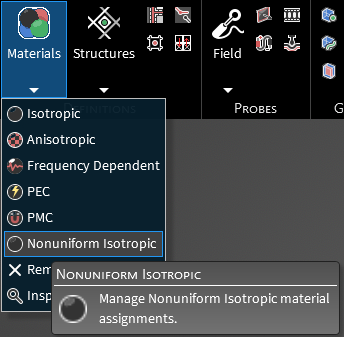

Materials within the Definitions section under the EMA3D tab in the ribbon. Then select
Nonuniform Isotropic.

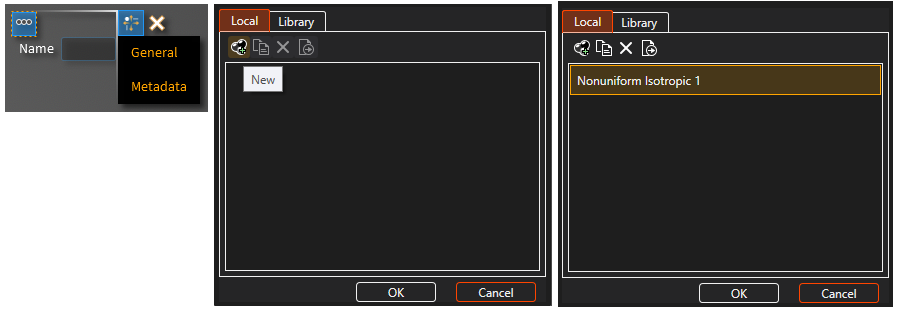

In the HUD, select the material library button. A new window will appear. Select the
New button. A new Nonuniform Isotropic material will appear. Double click it to assign it.

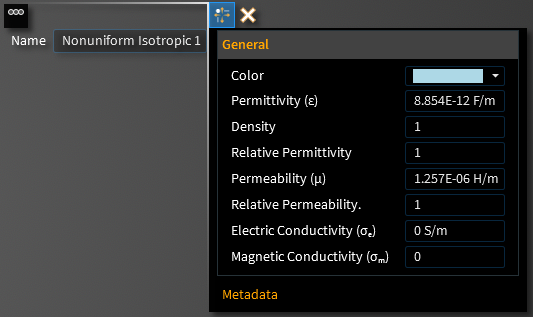

In the Properties Panel, adjust the nonuniform isotropic properties as desired.

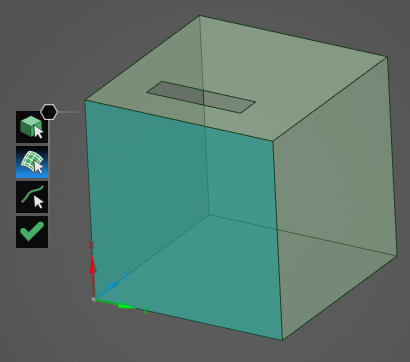

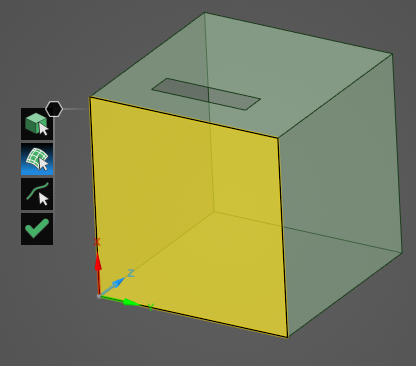

Use the appropriate selection tool (body
, surface
, or line
) to assign the nonuniform isotropic material. To assign material properties, either select the geometric entity in the model window or in the Structure Tree.
Click OK
to complete the definition.

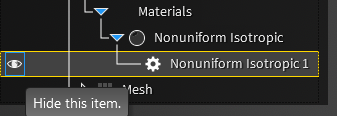

To hide the color and revert to the original, click the eye next to the material type under the Definitions node in the Simulation Tree.

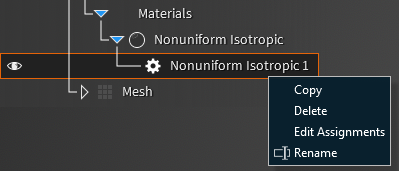

Adjust the definitions of the Nonuniform Isotropic material at any time by right clicking it within the Simulation Tree and selecting Edit from the pop-up menu.

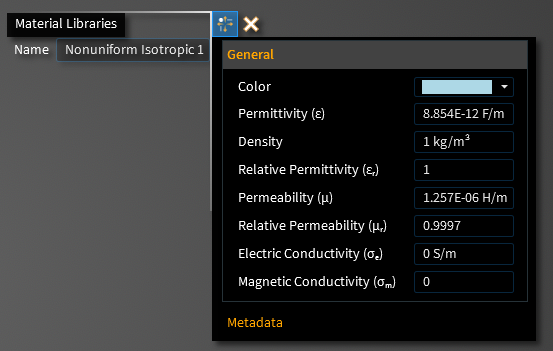

GeneralEntry | Meaning |
|---|---|
Material Libraries | Material Selection |
Name | Name of the material. |
GeneralEntry | Meaning |
|---|---|
Color | Color to use when rendering the material. |
Permittivity (ε) | Material absolute permittivity. |
Density | Material Density [kg/m^3]. |
Relative Permittivity (εᵣ) | Material relative permittivity. |
Permeability (μ) | Material absolute permeability. |
Relative Permeability (μᵣ) | Material relative permeability. |
Electric Conductivity (σₑ) | Material electric conductivity. |
Magnetic Conductivity (σₘ) | Material magnetic conductivity. |
MetadataEntry | Meaning |
|---|---|
Part Number | Part number of material (if any). |
Company | Company of material (if any). |
Category | Category of material (if any). |
Abbreviation | Abbreviation of material (if any). |
Description | Description of material (if any). |
Short Name | Short name description of material (if any). |
Long Name | Long name description of material (if any). |
Version | Version of material (if any). |
