CHARGE



EMA3D Charge is a suite of solvers assembled in the Discovery interface designed to handle both internal and surface charging simulations, along with air and solid dielectric electrostatic breakdown scenarios.

This section of the user manual describes the procedure for preparing, solving, and post-processing the simulation in EMA3D CHARGE.

EMA3D CHARGE uses Ansys Discovery to draw or import the model geometry, clean the imported geometry, and generate the model mesh.

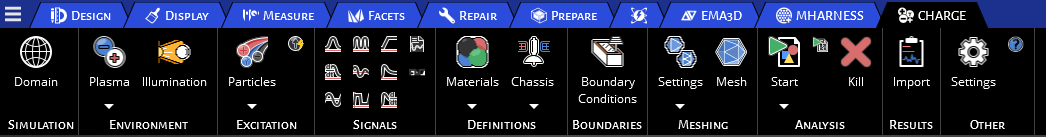

The EMA3D CHARGE user interface is a ribbon-based interface as shown below:

Each section corresponds to a specific stage of the EMA3D procedure:

Model pre-processing

1. Simulation

2. Environment

3. Excitation

4. Definitions

5. Meshing

Model solving

1. Analysis

Model post-processing

1. Results

Other

1. Settings

2. Help

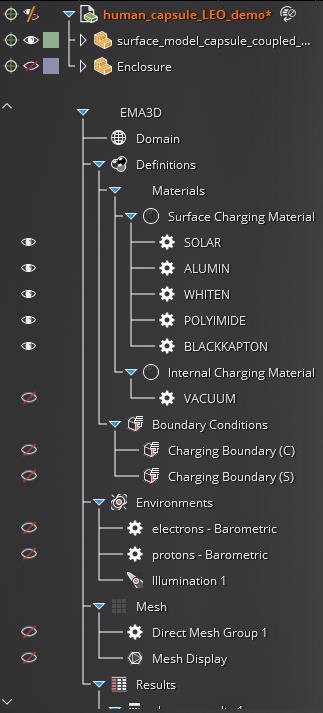

All the simulation data are collected in the Simulation Tree from which can be retrieved for further analysis and plotting.
