Geometry

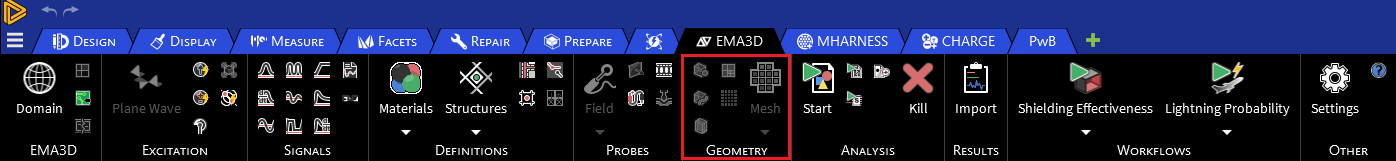

Within the Geometry section, there are several items that relate to meshing geometry and creating geometry in relation to the domain lattice boundaries (for features such as current source lines which must be attached to boundaries, animation probe planes that encompass the entire domain, etc.), including:

1.   Mesh

2.   Point

3.   Line

4.   Surface

5.   Subgrid

6.   Variable Grid

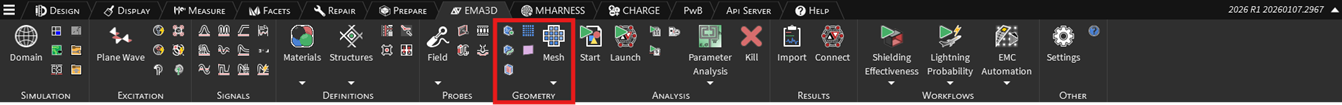

The Mesh button in this section is the same in both the EMA3D and MHARNESS panels, and users may select it under either tab.
