Inspect Mesh by Component |  |
Mesh visualization and inspection has been updated to add the ability to choose any part of the geometry to visualize separately.
The individual mesh of specific components can be viewed and inspected using the “by Component” option now nested under the Mesh Display in the Simulation Tree.
Inspecting mesh by componentNavigate to the Structure Tree of the model.
Alter the visibility to only show the component whose mesh will be visualized.
Navigate to the Mesh Display in the Simulation Tree of the model.

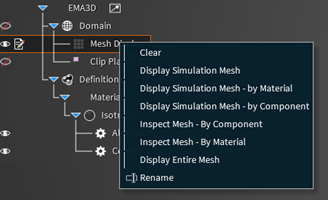

Right click the Mesh Display and select “Display Simulation Mesh - by Component”
Once the mesh has been generated, visualize the Mesh Display by selecting the Eye Icon.

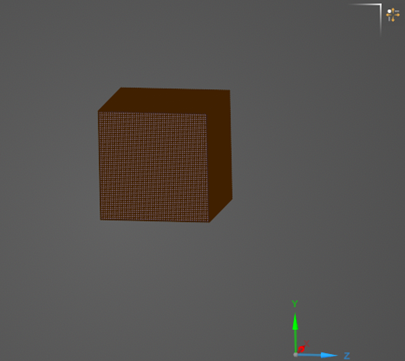

The mesh for the individual selected component should now be visible.
To inspect the mesh of a specific component, navigate back to the Mesh Display in the Simulation Tree.
Right click the Mesh Display and select “Inspect Mesh – by Component”.
