Current

EMA3D allows setting electric or magnetic current distributed across geometry as an excitation source.

The locations of the current sources are specified by identifying geometry or nodes where the source is to be applied, with additional data provided to specify the source characteristics.

Creating the Current Source

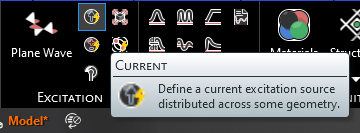

  1. Click Current Current Density Image 16 source within the Excitation panel under the EMA3D tab in the Ribbon.

    current source 1

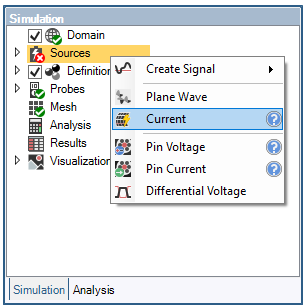

    Alternatively, right click Sources in the Simulation Tree and select Current Density Image 16 Current.

    current source 9

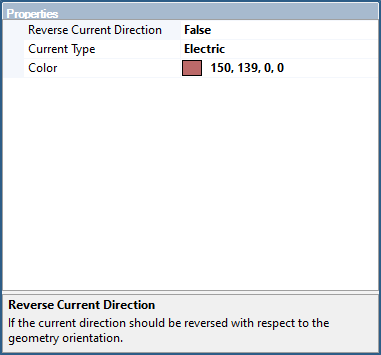

  2. Adjust the properties of the current source in the properties panel. The list of adjustable properties and their definitions are provided in the table at the end of this page.

    current source 2
  3. Click on the appropriate selection tool (i.e., surface Select Surface Image 16 , line Select Line Image 16 , or point body Select Point Image 16,) in the top left of the model window to restrict the current source assignment definition.

  4. Click on the geometric entity to be excited. It will be highlighted. Note that the geometric entity used for the source should not have a material definition assigned to it.

    current source 3
  5. Click OK Check Image 16 to complete the current source setup.

  6. The excited geometry will be recolored in the model window (users may need to click elsewhere in the model window to remove the highlighting). Additionally, for a line source, the flow direction of the current will be denoted by gray arrows on the excited geometry.

    current source 4
  7. The current source will be added to the Simulation Tree under the Sources node as Current Source. The yellow warning label attached to it indicates that the source needs a signal attached to it.

    current source 6
  8. Instructions on adding signals can be found here. Once a signal is attached to the source, the yellow warning label will disappear.

    current source 7
  9. To edit the current source at any time, right click Current Source at any time in the Simulation Tree.

    current source 8
Current Source Properties

Entry

Meaning

Reverse current direction

The current flow direction is prescribed automatically depending on the direction in which the geometry was drawn. The flow direction for a line will appear as gray arrows overlaid on the source geometry after clicking the OK Check Image 16 button. To reverse the direction change False to True

Current Type

The type of current, Electric or Magnetic, to be applied to the selected geometry

Color

The rendered color of the source in the model
