Pin Voltage Drive

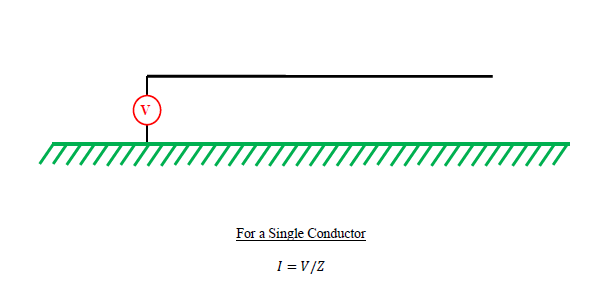

A pin voltage source is applied at the end of a conductor as illustrated below. The end is assumed perfectly grounded. Any defined circuit termination at the pin voltage end is thus ignored. If a terminal nonzero conductance is defined, then an error message will be issued.
