Junction SBC Voltage Drive

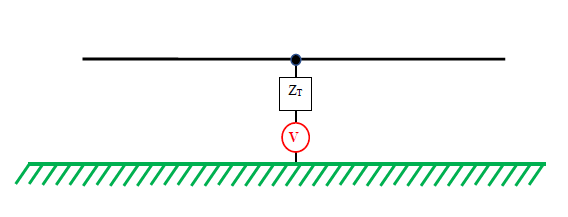

A junction SBC voltage source is applied at a conductor junction as illustrated below. The junction can have a specified boundary condition circuit. The term, ‘SBC’ stands for ‘Series Boundary Condition’. Any allowable junction boundary can be specified. If a nonzero conductance is defined at the junction, then an error message will be issued.
