Start

Now that the model has been generated, the domain set, radiation sources created, materials defined and geometry meshed, the simulation solver can be initiated.

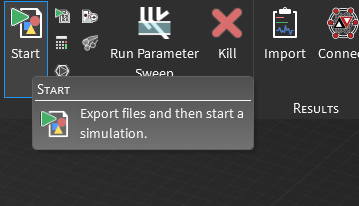

In the Analysis section, press Start .

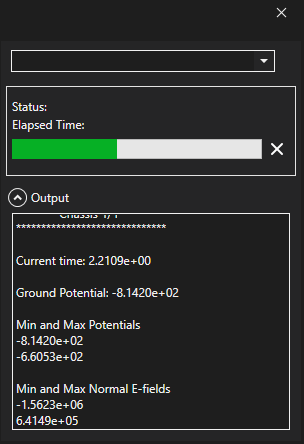

A window will appear similar to the one below, showing the steps the software is taking to compute the simulation. If there is an error it will show up here in the output window. If the simulation is running correctly, you will see values of the output being produced for each time step. The elapsed time will be ticking, and once the simulation finishes the output window will state this and show the final computation time.
When the simulation finishes, it puts a results file in the simulation directory folder of the raw data. Additionally, the data will appear in the structure tree under the Results section. See the Results section of CHARGE for further steps.
