Shield Transfer Impedance Tubular

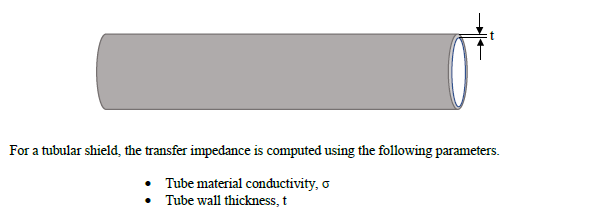

The shield transfer impedance tubular algorithm is designed to compute the transfer impedance of a solid tubular shield. A typical tubular shield is shown below.

The transfer impedance for a tubular shield is primarily attributable to the skin depth of the shielding material which is a function of the material conductivity.
