Shield Transfer Impedance Frequency Dependent

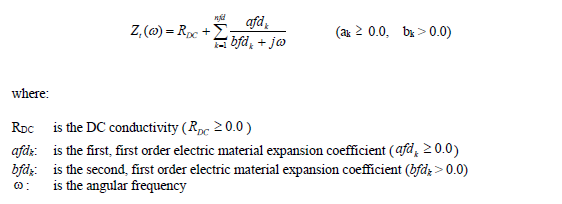

The shield transfer impedances can also be designated as frequency dependent. Frequency dependent shields are characterized by the following equation:

It is the responsibility of the user to determine the coefficients and the number of terms in the representation above. The acceptable parameter ranges are provided above in the description list. Assigning values outside of the range stipulated above will result in an error message in MHARNESS and program termination.
