Shield Transfer Impedance Tape Wound

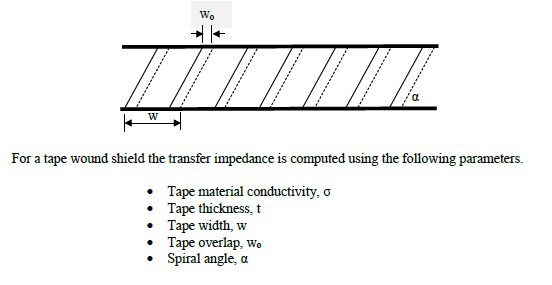

The shield transfer impedance tape wound algorithm is designed to compute the transfer impedance of a tape wound pattern. A typical tape wound pattern is shown below.
