Grounded Shield Connectors

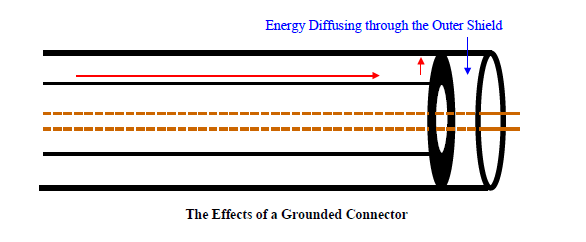

A grounded shield connector directly grounds a shield to the superior shield. Such a configuration exposes the inner conductors to energy coupling directly through the superior shield as illustrated in the figure below.
