EMC Plus and Charge Plus User Manual

EMC Plus and Charge Plus User Manual

Concepts, Features, Capabilities, and Terminology

Cable Connector Topology

Connector Closed

Pin Wire Connectors

Pigtail Connectors

Grounded Pigtail Connectors

Grounded Shield Connectors

Absent Connectors

Click or drag to resize

Connector Open

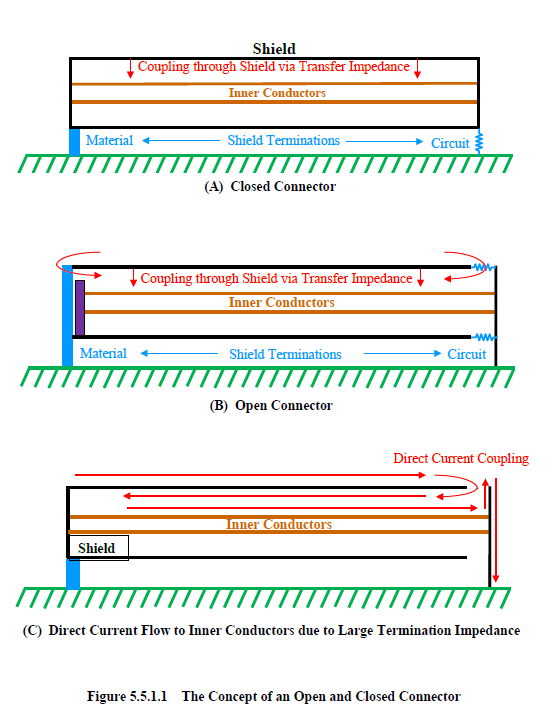

The explanation of the “connector open” and “connector closed” specifications was provided here.

f 7
