Surface Results

With the raw data loaded, we can now make the subset data of the individual outputs (that are useful for the user).

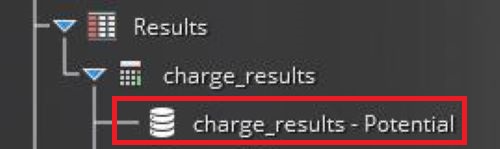

f 1cf 7aec-e 7f 6-4cc 7-ab 57-b 5c 5b 8904af 4

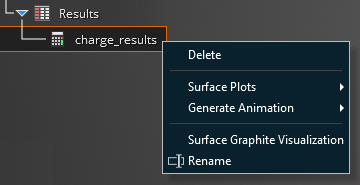

With the raw 'charge_results' data loaded into the GUI in the Simulation Tree, right click theses results.



Screenshot 2023-06-28 153712



Details on the options are provided below:

  1. Delete

  2. Surface Plots

  3. Generate Animation

  4. Surface Graphite Visualization

  5. Rename

Surface Plots

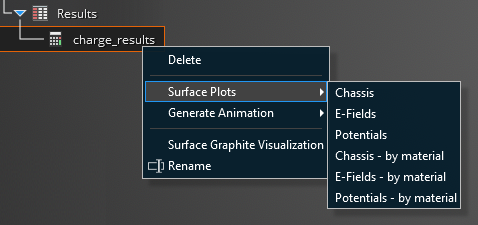

  1. After right clicking 'charge_results' and hovering over Surface Plots, you will see 6 options to compute output data.



    Screenshot 2023-06-28 153822



    Compute calculates the average of theses of these paramteres for all materials, and this will be used to generate 2D plots that have a single min, max, and average value. This gives a broad picture of the general charging behavior of your entire model.

    • Chassis- Calculates the min, max and average chassis potential of all materials

    • E-fields- Calculates the min, max and average electric field of all materials

    • Potentials- Calculates the min, max and average potential of all materials



    Compute By Material calculates these parameters for all the materials, and so will be used to generate 2D plots that has a min, max, and average for each material assigned in the model. This is very useful to see the individual charging behavior of the material and gives the user more insight into how the material properties affects the plotted data.

    • Chassis - by material - Calculates the min, max and average chassis potential of all materials

    • E-fields - by material- Calculates the min, max and average electric field of all materials

    • Potentials - by material- Calculates the min, max and average potential of all materials



  2. Compute an option above by right clicking 'charge_result' hovering over Surface Plot and clicking the target option.



  3. This will generate a data subset located in the Structure Tree under Results. When the data subsets are created in the GUI, this creates a .dat file in the saved directory of the simulation with the name of the dataset created. If you navigate to this file and open it with a .txt viewer you will see the columns of the data computed, including the time steps giving the user the ability to manipulate and plot the data outside of the CHARGE GUI.



Generate Animations

This option will be discussed in the Visualization section of the manual, along with how to generate and edit 2D plots of all the possible data subsets.
