Shield Transfer Resistance

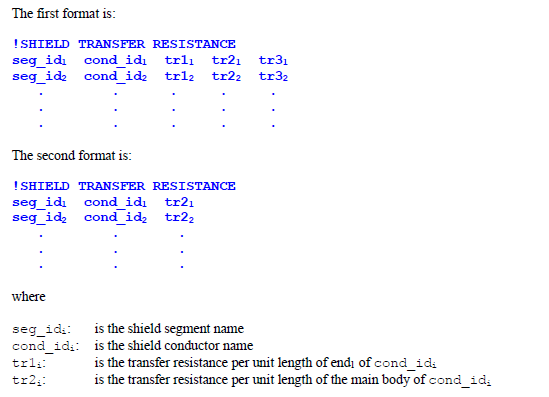

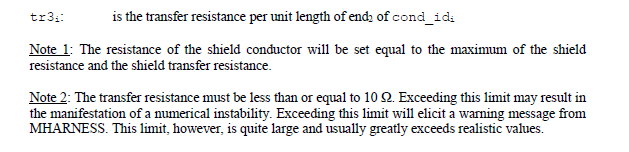

This keyword is used to define a constant shield transfer resistance. There are two input file line text formats used for this keyword. The first format is used if the ends of the segment (ie connectors) have a different transfer resistance than the main line of the cable. The second format is used if this is not the case.
