Shield Transfer Impedance Multilayer

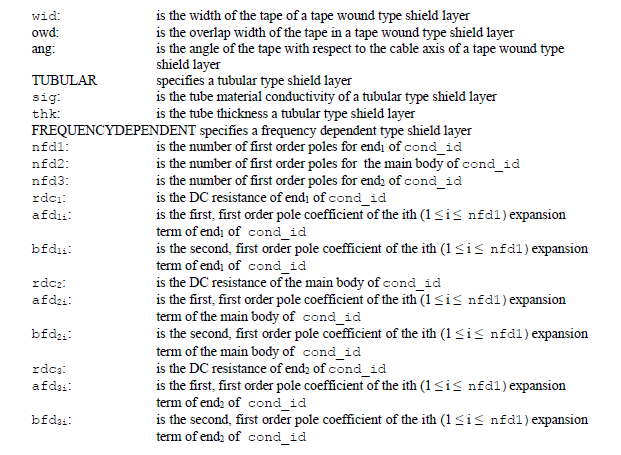

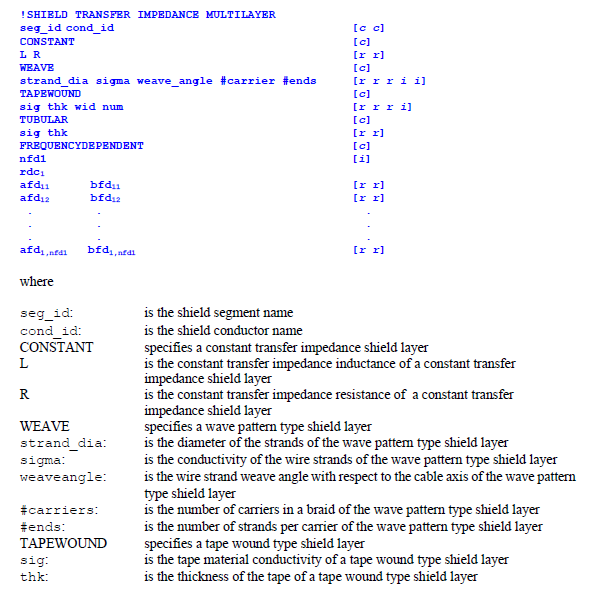

This keyword is used to automatically compute the shield transfer impedances when many different layers are required. The input file text line format is as follows.

c 81
c 82
