Shield Transfer Impedance Tape Wound

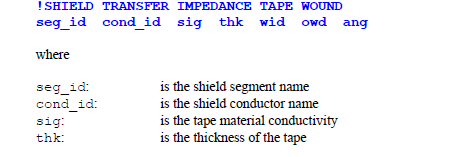

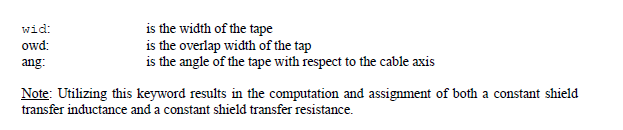

This keyword is used to incorporate shield transfer impedances when a shield consists of a tape wound pattern. The required input file text line format is as follows.

c 75
c 76
