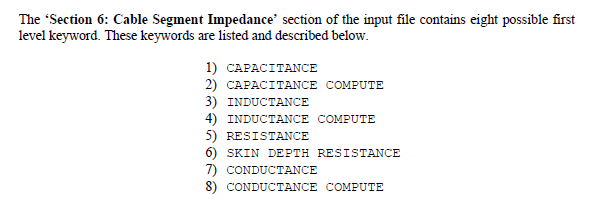

Cable Segment Impedance

The impedance matrices can be manually defined or automatically computed by MHARNESS®. When manually defining impedance parameters, all values are understood to be per unit length. For automatic computation, the cross-sectional geometry must be accurately supplied. This requires the use of the SEGMENT/COMPLEX or the SEGMENT/COMPLEX2 input file keyword combination pair.
