Inductance

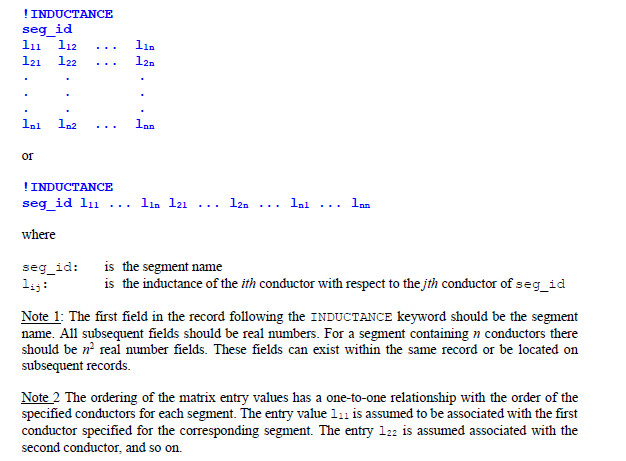

This keyword is used to manually provide the inductance information for the segment specified. The information provided under this keyword possesses the same format as that of the CAPACITANCE keyword. The required input file text format is:

c 46
c 47
