Capacitance

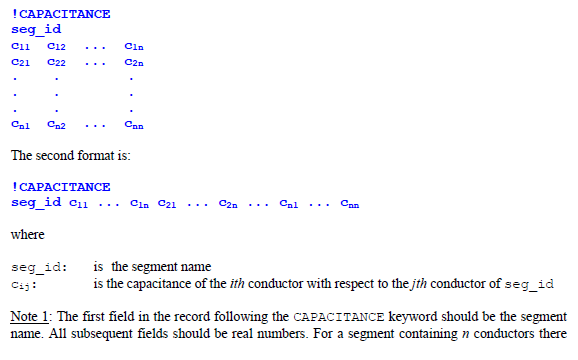

The purpose of this keyword is to manually provide the cable capacitance parameters/matrix information. For a segment with n conductors, a square matrix of dimension n×n is expected. There are two possible formats for specifying the capacitance. The first format is:
