Thin Wire Source

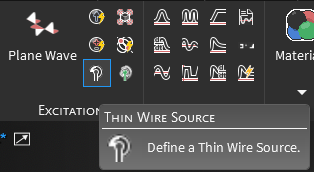

Click Thin Wire within the Excitations section under the EMA3D tab in the ribbon.

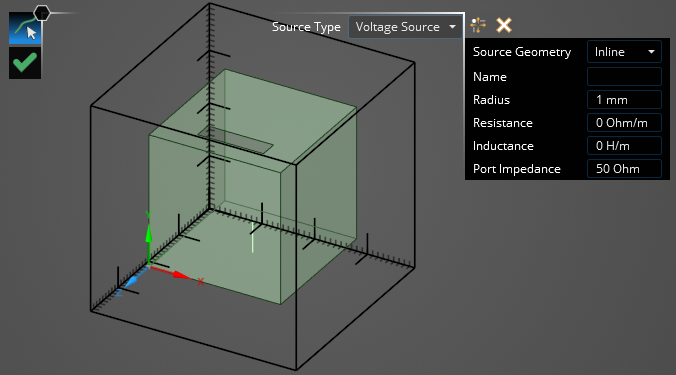

In the Properties Panel, adjust the thin wire source properties as desired.

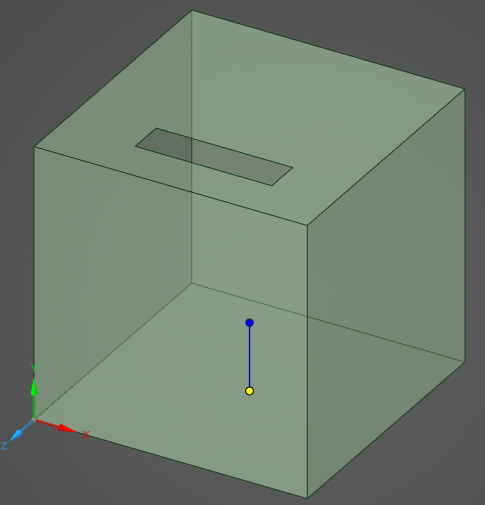

Using the select line tool, select the line to which to assign the thin wire definition. It will be immediately recolored blue.

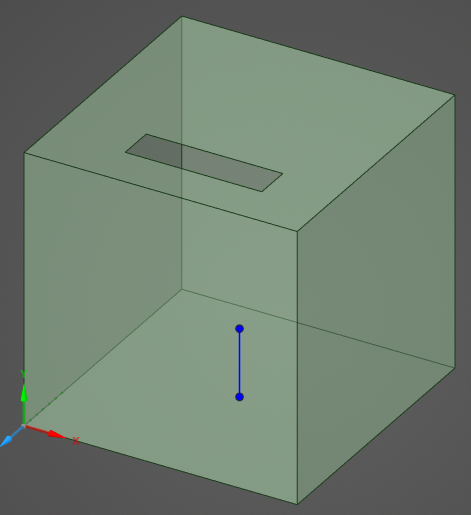

Drag the cursor to use the select point tool to select the point to which to assign the thin wire source location. It will be immediately recolored yellow. If you selected a Pin Injection Voltage source, the excitation point will automatically jump to the closest end point of the thin wire to where the user clicked.

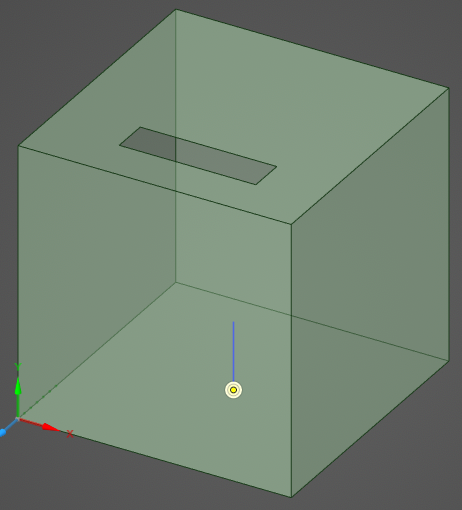

Click OK to complete the thin wire source definition. The thin wire excitation point will change to a yellow dot encircled by two yellow rings.

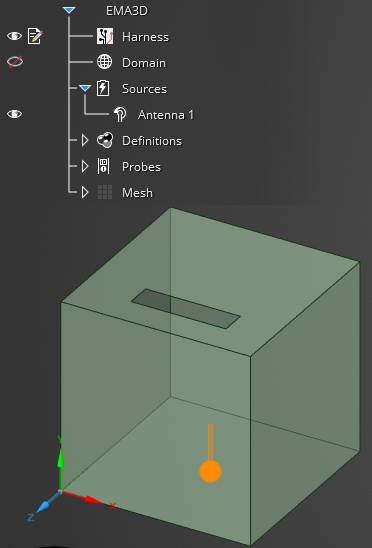

The new Thin Wire source should now appear in the Simulation Tree under Antenna # within the Sources node. Selecting Antenna # within the Simulation Tree will highlight the Thin Wire source in the model window.

Adjust the definitions of the thin wire source at any time by right clicking it within the Simulation Tree and selecting Edit from the pop-up menu.
