Materials

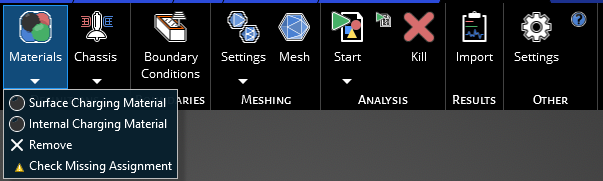

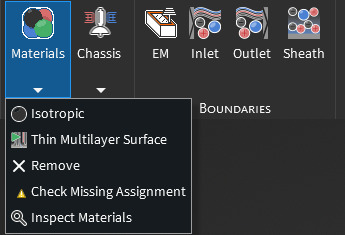

Within the Definition section of the CHARGE tab the user may set materials used for the model geometry regardless if its a surface, internal, or coupled simulation. CHARGE has a small library of materials that can be used, but these sections will also go over creating your own unique materials and the properties that are used for describing them. All surfaces or solids have to be assigned a material before going on and meshing the model. There are two sections below designated for the internal charging and surface charging materials inaddition to other material functions.

Sections for Materials

• Surface Materials

• Internal Materials

• Remove
