Remove

The Remove tool allows the user to unassign material definitions from the model geometry without removing the material definition from the structure tree. The steps to remove a material assignment are provided below.

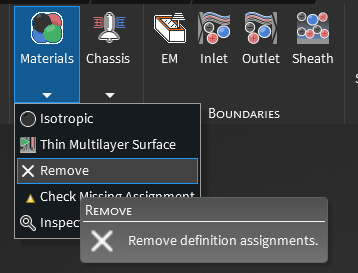

1. Click Remove located in the Materials within the CHARGE tab.

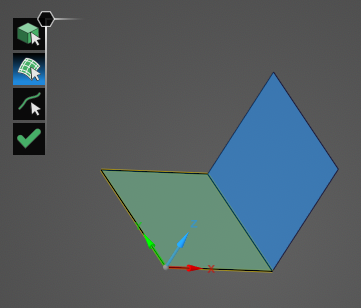

2. A interface will appear where you will select the corresponding geometry structure: body, surface, line segment. Once the geometry structure is selected click on the model to remove the assignment.
