Resistance Matrix

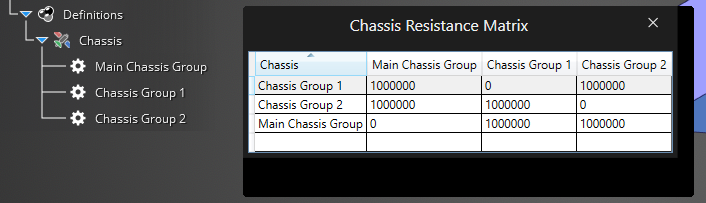

Click on the Chassis Resitance Matrix to produce a matrix of the resistance between Chassis assignments. The matrix will be N x N where N = number of Chassis definitions. The values in the matrix correspond the resistance values defined for each Chassis Group. The position of the non-zero values correspond to the resistance for specific directionalities of current. For the best results have the values be symmetrical.
