New Chassis Group

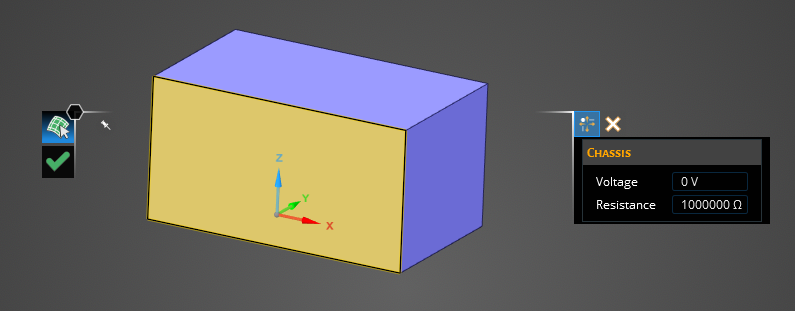

To define a new group click on New Chassis Group, a interface will appear with two options. This interface allows you to assign an Resistance and initial Voltage to a specific surface geometry. To assign click on the target geometry.

After the assigning processes the Main Chassis Group will appear in the structure tree. You are able to go back and edit this through the structure tree.
