Space Step

The ‘Section 3: Space Step’ section of the input file contains only one possible first level keyword. This keyword is listed and described below.

Space Step

There are three possible formats for specifying the space step. The type of format depends on the number and type of variables following the first level SPACE STEP keyword.

If the second level COMPUTE keyword was specified under the first level TIMESTEP keyword, then a space step will be automatically computed and overwrite all specified space step information provided under the SPACE STEP keyword.

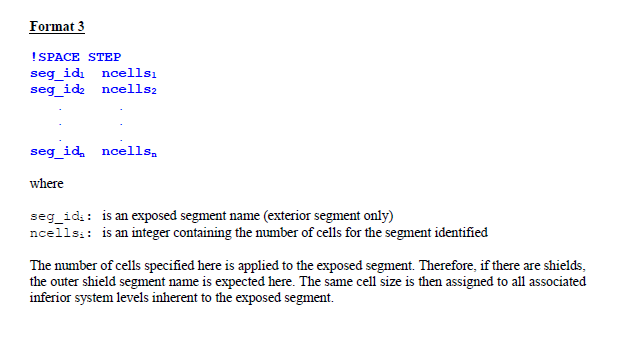

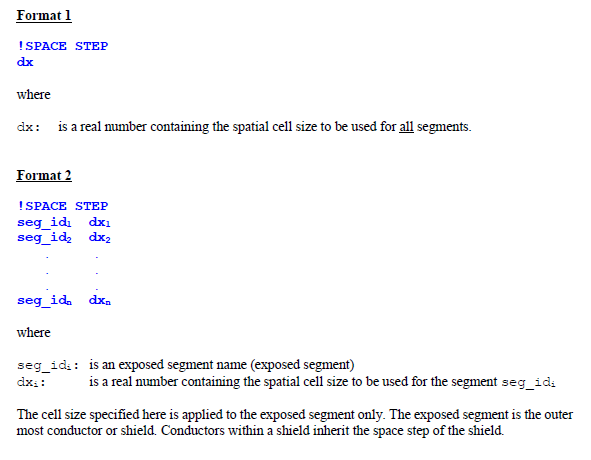

The three input file text line formats for specifying space steps are provided and described below.
