Connector Pin Wire

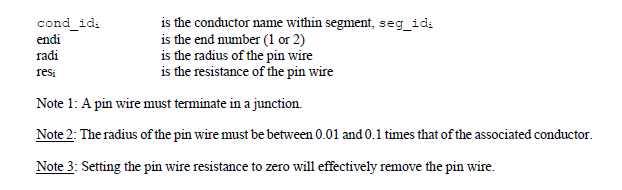

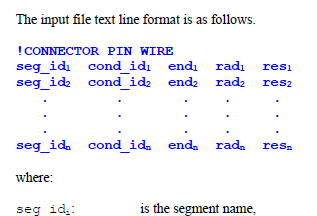

The pin wire feature is devised to be used on cable shields. A pin wire specification on a solid conductor has little impact. The primary effect of a pin wire is the coupling of energy to conductors within the shield. The radius of the pin wire is used to compute the inductance. The radius has no other impact to the geometry.
