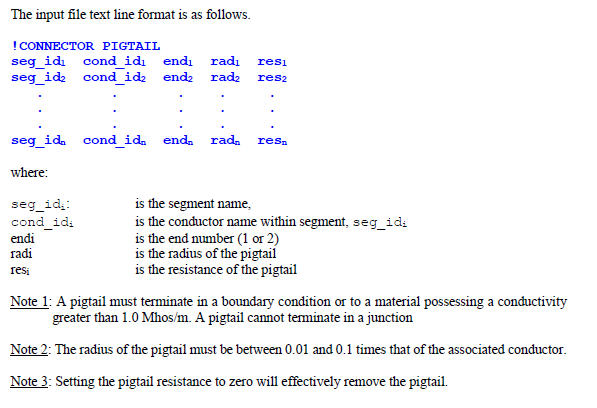

Connector Pigtail

The pigtail feature is devised to be used on cable shields. A pigtail specification on a solid conductor has little impact. The primary effect of a pigtail is the coupling of energy to conductors within the shield. The radius of
