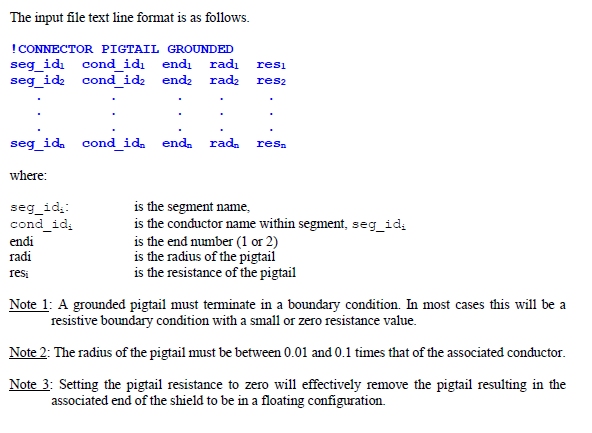

Connector Pigtail Grounded

The pigtail grounded feature is devised to be used when cable shields also possess an overbraid or another shield. The primary effect of a grounded pigtail is the coupling of energy from the end of the shield to the inner conductors and through the overbraid directly to the inner conductors. The radius of the pigtail is used to compute the inductance. The radius has no other impact to the geometry.
