EMC Plus and Charge Plus User Manual

EMC Plus and Charge Plus User Manual

Concepts, Features, Capabilities, and Terminology

Cable Connector Impedance

Connector Capacitance

Connector Inductance and Connector Inductance Compute

Connector Resistance

Connector Conductance

Connector Conductance Compute

Connector Impedance Match

Connector Inter-conductor Resistance

Click or drag to resize

Connector Inter-conductor Resistance

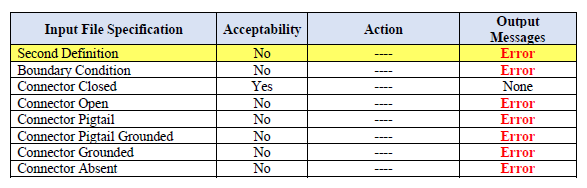

The connector inter-conductor resistance keyword enacts an algorithm that derives a connector conductance matrix that provides the correct entries to create a specified conductor to conductor resistance between specified segment conductors.
