Connector Conductance Compute

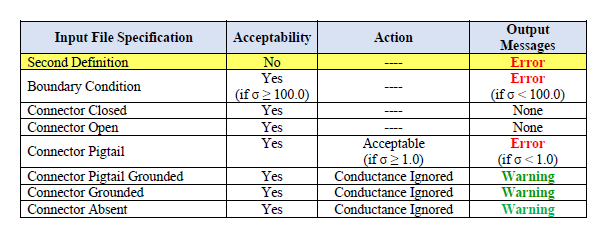

The connector matrix may be automatically computed. This is done by utilizing the capacitance matrix and a supplied conductivity (σ). There are many possible connector specifications. If another definition is supplied, in addition to a connector conductance compute, then the resultant configuration is provided in the table below. For instance, if a second definition is supplied, then an error message will result. If a boundary condition is specified, then this is acceptable if σ ≥ 100.0. An error message will result if σ is less than 100.0.
