Probes

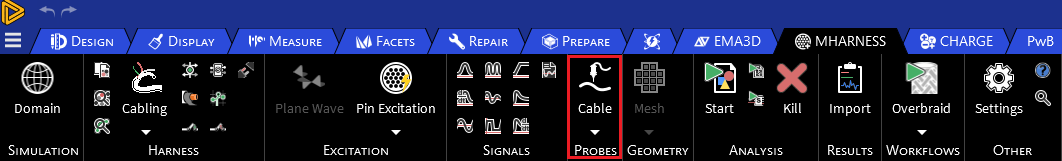

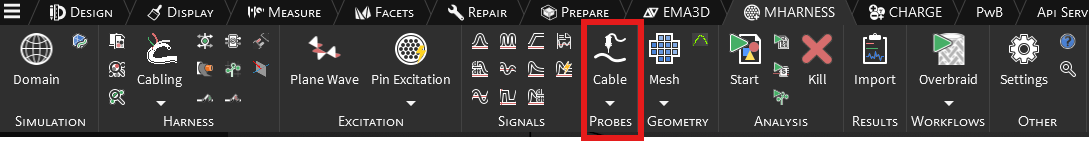

The Probes section contains the MHARNESS probe options.

Probes are used in MHARNESS to visualize physical quantities such as voltages and electric currents evaluated on specific cable within the solution domain.

MHARNESS has two cable probes that probe values on the actual cable elements (e.g., shields, conductors, etc.), rather than on the lattice mesh nodes:

1.   Voltage Probe

2.   Current Probe
