Skin Depth Probe

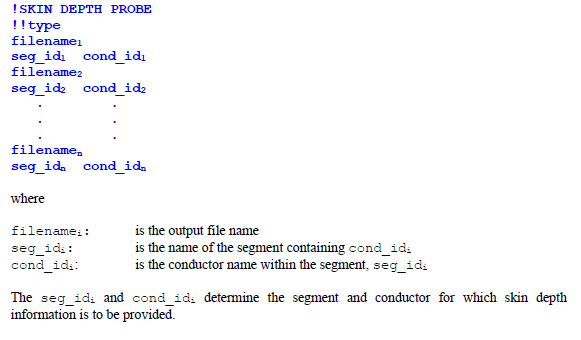

The Skin Depth Probe creates a file that contains conductor resistance information, in the frequency domain, as a result of skin depth effects. The file contains three fields. The first field contains the frequency, the second field contains the actual skin depth resistance, the third field contains a fit curve. The fit curve is used by the algorithms of MHARNESS®. A separate file is created for each conductor for which skin depth information is specified. The required input file text line format is:
