Output Source

This keyword is used to write the source waveform to an output file. This is especially useful when the source waveform designated is one of the sixteen predetermined, automatically computed, waveform types. The data records are of the form

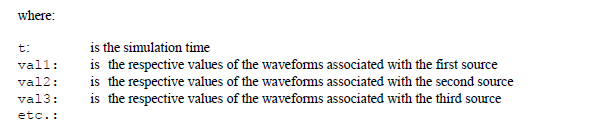

t, val1, val2, val3, val4, ...

The ordering of the waveforms corresponds to the order of appearance within the input file. The first source specification to appear in the input file is the first waveform (val1), the second specification to appear is the second waveform (val2), and so on.

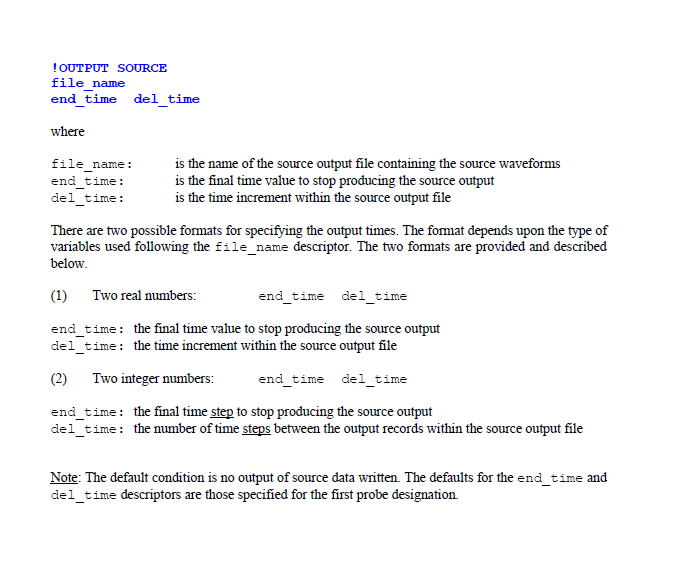

The required input file text line format is:
