Connector Inductance |  |

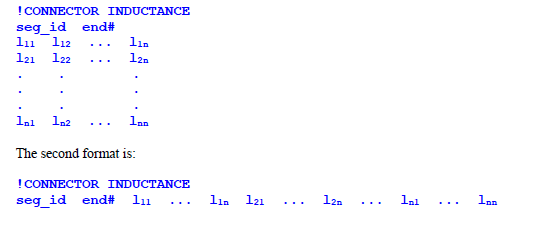

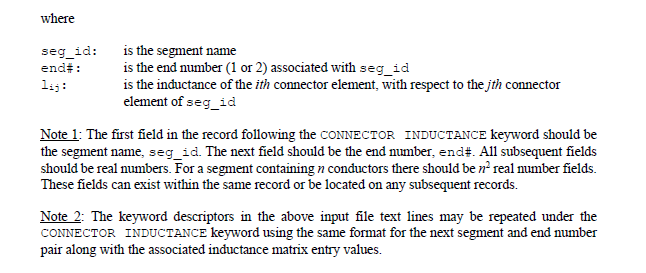

This keyword is used to provide the connector inductance matrix for the first segment cell (end# = 1) or the last segment cell (end# = 2). The format is similar to that of the CONNECTOR CAPACITANCE keyword. There are two possible input file text line formats for specifying the CONNECTOR INDUCTANCE. The first format is:
