Connector Capacitance

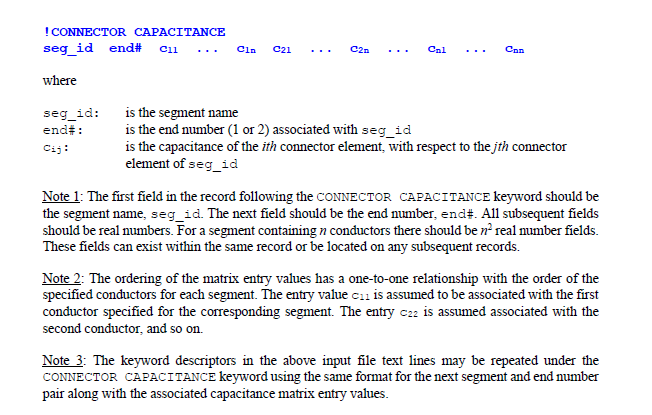

The purpose of this keyword is to manually provide the connector capacitance matrix information for the first segment cell (end# = 1) or the last segment cell (end# = 2). In general, for a segment with n conductors, a square matrix of dimension n x n is expected. There are two possible input file text line formats for specifying the connector capacitance. The first format is:
