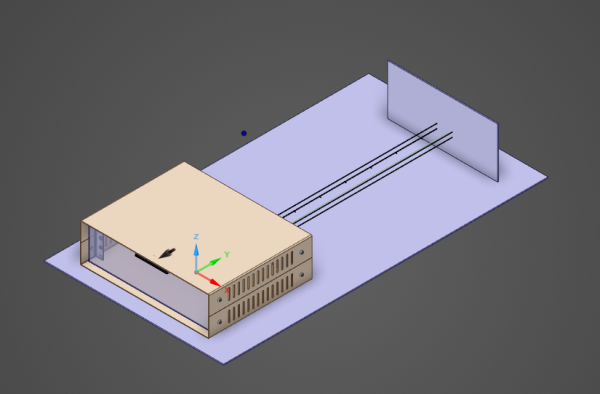

PCB and Cable in Enclosure

This tutorial serves as an introduction to simulating radiated emissions from a PCB and a cable in EMC Plus. The user will become familiar with importing PCB schematic files in the Ansys Electronics Database (EDB) format. This demo also serves as an introduction to configuring branched MHARNESS cables as well as defining point and 3D probes to capture and visualize field data. By the end of this demo, the user will be able to simulate radiated emissions from the platform.

• Tutorial materials
