Overbraid Automatic Workflow |  |

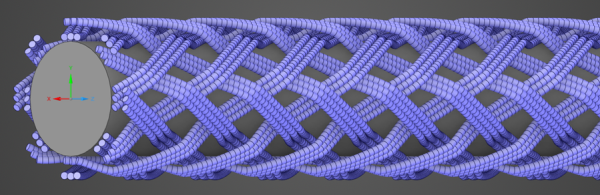

The user will extract transfer impedance for an explicitly modeled overbraid via full-wave FDTD simulation in EMC Plus. By inputting a handful of geometry parameters, the user can generate a physically-accurate CAD representation of an overbraid and characterize its shielding properties from electromagnetic first principles. The user will also learn how to adjust the provided parameters to model a variety of overbraids.
