DO-160 Lightning Strike |  |

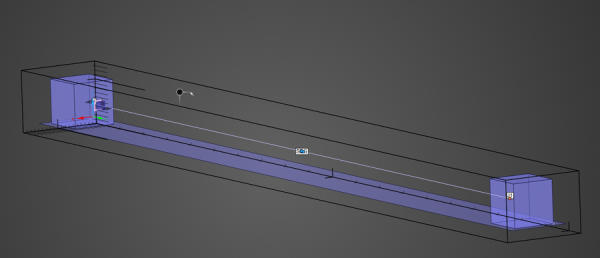

This tutorial will demonstrate the EMC Plus workflow for a DO-160 style lightning strike simulation. This workflow includes setting up the problem space, assigning properties, defining probes, and basic post-processing. A model of a generic cable bundle connecting two boxes will be used to simulate this problem. Voltage and current probes will be placed on cables of interest, and the bundle will be exposed to a Component A lighting strike.
