HIRF Coupling To An Aircraft

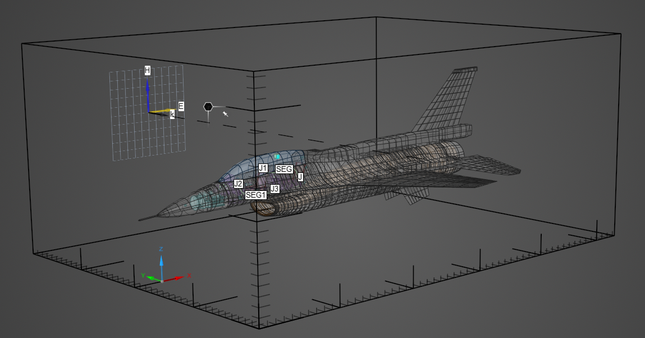

This tutorial will demonstrate the EMC Plus workflow for a high intensity radiated field (HIRF) simulation. This workflow includes setting up the problem space, assigning properties, defining probes, and basic post-processing. A pre-simplified jet model will be used to simulate this problem. The jet will be exposed to a plane wave of a gaussian pulse to simulate multiple frequencies at once. This will allow the canopy shielding effectiveness and the coupling onto avionic cables to be computed.
