Structure Probe

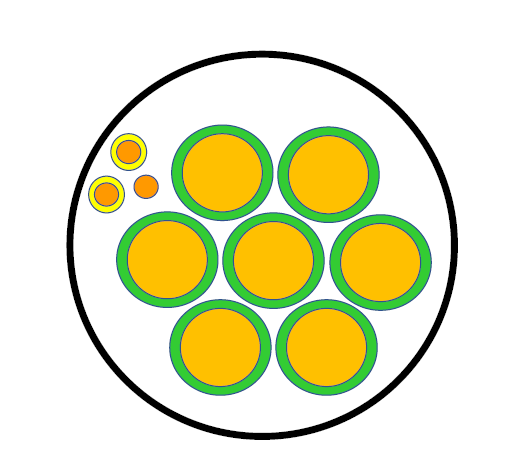

The Structure Probe is used to create POSTSCRIPT files of the cross section of MHARNESS® cable segments. Any number of cable segments can be drawn complete with the associated reference, as illustrated below. Conductors and insulating jackets can be included. A legend is provided that identifies the conductors and associated color.
